Unit 2: Exploring Microsoft Excel

1. Excel Window Features

Microsoft Excel is a powerful electronic spreadsheet program you can use to automate accounting work, organize data, and perform a wide variety of tasks. Excel is designed to perform calculations, analyze information, and visualize data in a spreadsheet. Also, this application includes database and charting features.

For this course we are going to be using the Microsoft Excel 2019.

To launch Excel for the first time:

1. Click on the Start button.

2. Click on All Programs.

3. Select Microsoft Office from the menu options, and then click on Microsoft Excel 2019

The purpose of the window features is to enable the user to perform routine tasks related to the Microsoft applications. All the Office applications share a common appearance and similar features. The window features provide a quick means to execute commands. Here are some pertinent Excel features:

• Title Bar: It shows the title name of the workbook together with the application extension.

• Quick Access Toolbar: Its feature allows you to customize your frequently used and important tools.

• Active Cell: A cell that is currently selected. It will be highlighted by a rectangular box and its address will be shown in the address bar. To edit a cell, you double-click on it or use F2 as well.

• Columns: A column is a vertical set of cells. A single worksheet contains 16384 total columns. Every column has its own alphabet for identity, from A to XFD.

• Rows: A row is a horizontal set of cells. Every row has its own number for identity, starting from 1 to 1048576.

• Fill Handle: It’s a small dot present in the lower right corner of the active cell. It helps you to fill numeric values, text series, insert ranges, insert serial numbers, etc.

• Address Bar: It shows the address of the active cell. If you have selected more than one cell, then it will show the address of the first cell in the range.

• Formula Bar: The formula bar is an input bar, below the ribbon. It shows the content of the active cell, and you can also use it to enter a formula in a cell.

• File Menu: It contains options like (Save, Save As, Open, New, Print, Excel Options, Share, etc.)

• Status Bar: It is a thin bar at the bottom of the Excel window. It will give you instant help once you start working in Excel.

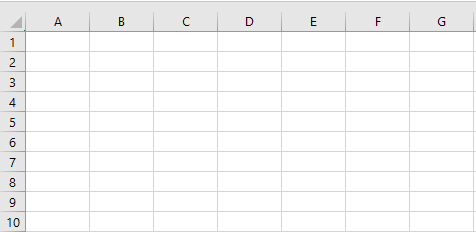

2. Excel Worksheet structure

The Sheet is a set of rows and columns. It forms the same pattern as we have in math exercise books, the rectangle boxes formed by the pattern are called cells. The values can be typed in cells, and they could be numbers or letters.

Cells

A Cell in Excel is an individual box within a Worksheet/Tab and is usually used to input and hold numeric or text data. Each Cell has a name, that name comes from the Column and Row the Cell sits on.

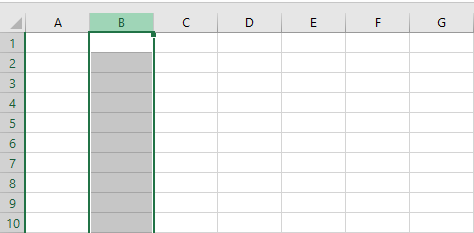

Columns

Columns run left to right along the top of the Worksheet/Tab and are labelled according to the alphabet. Each Column is a vertical series of Cells.

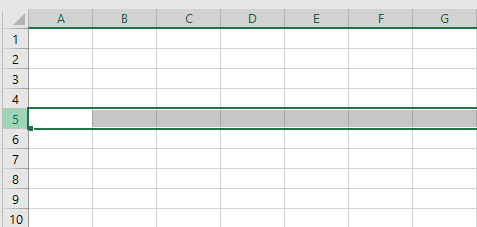

Rows

Rows are labelled along the left side of the Worksheet/Tab numerically and run down from top to bottom. Each Row is a horizontal series of Cells.

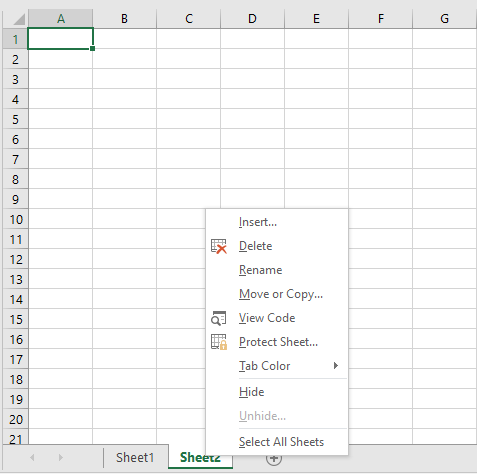

Worksheets/Tabs

Worksheets/Tabs are made up of Columns, Rows and Cells and are essentially pages of your Excel workbook. You can have multiple Worksheets/Tabs within your Excel workbook and they are a useful way to separate different types of data and information.

Unlike Columns, Rows and Cells, you can rename Worksheets/Tabs. By default, Worksheets/Tabs are named ‘Sheet1’, ‘Sheet2’ etc, but you can rename them and even colour code them if you wish by right-clicking on the Worksheet/Tab and selecting either ‘Rename’ or ‘Tab Color’.
